Technical performance and feature:
1. YFT-A serie hydraulic valve test bench suitable for welding, threaded valve testing(None-flange valve). With two types:plane blind plates, plactic seal plates for none-flange valve testing and O rings seal plates for flange valve testing.
2. Test medium can be choosing by user, water, air or kerosene.

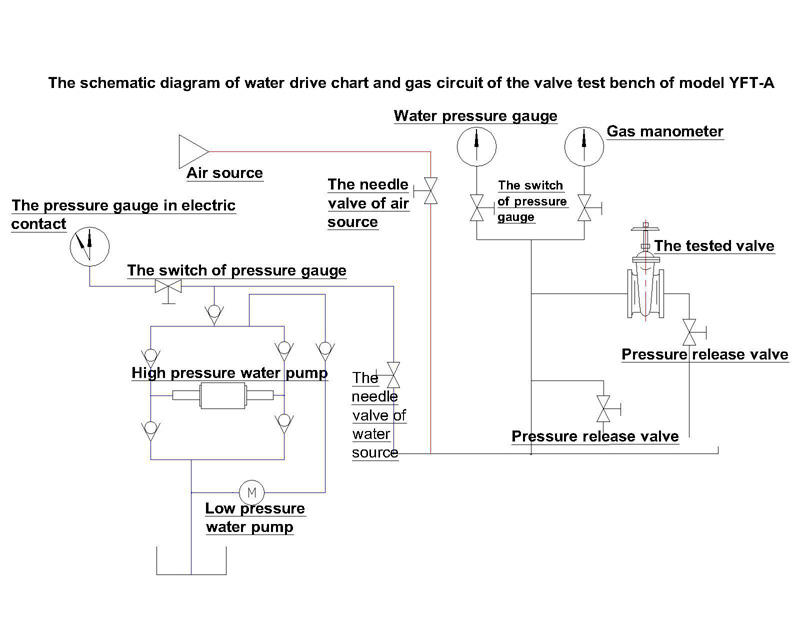

3. Test bench has low pressure water pump and water booster. There is an air connection reserved for air pump.
4. Water and hydraulic oil cycle use.
5. The test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of test bench.
6. PLC control, touch screen display pressure diagram and printer system is optional.
1. YFT-A serie hydraulic valve test bench suitable for welding, threaded valve testing(None-flange valve). With two types:plane blind plates, plactic seal plates for none-flange valve testing and O rings seal plates for flange valve testing.
2. Test medium can be choosing by user, water, air or kerosene.
3. Test bench has low pressure water pump and water booster. There is an air connection reserved for air pump.
4. Water and hydraulic oil cycle use.
5. The test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of test bench.
6. PLC control, touch screen display pressure diagram and printer system is optional.

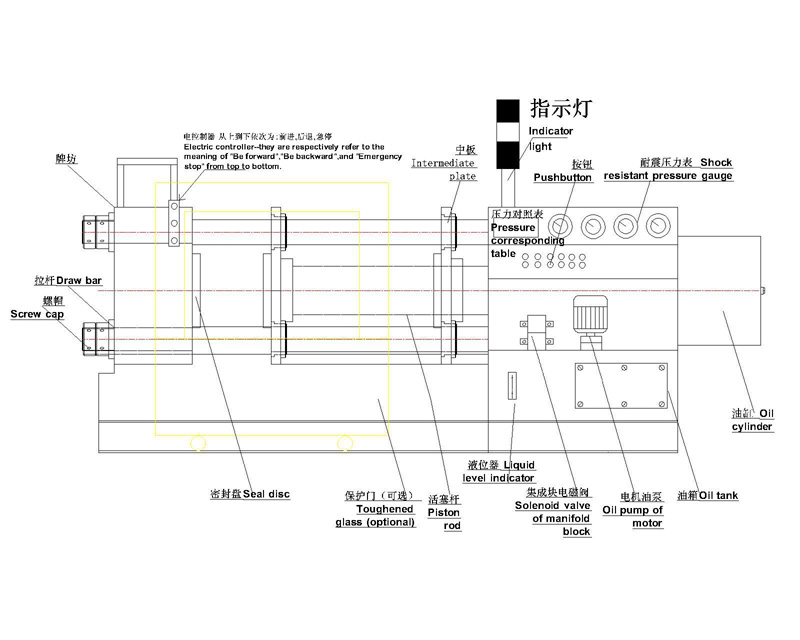

YFT-A hydraulic top pressure valve test bench
YFT-A series hydraulic valve test bench is suitable for the seal test and shell test of welding, threaded valves(None-flanged valves). With two types of flat blind plates:plastic seal plates for none-flanged valve testing and 0 rings seal plates for flanged valve testing.
Top Pressurized Valve Test Bench (Split Type)
YFT-A series hydraulic valve test bench suitable for welding, threaded valve testing(None-flange valve). With two types of sealing plates:plastic seal plates for none-flange valve testing and O rings seal plates for flange valve testing.
